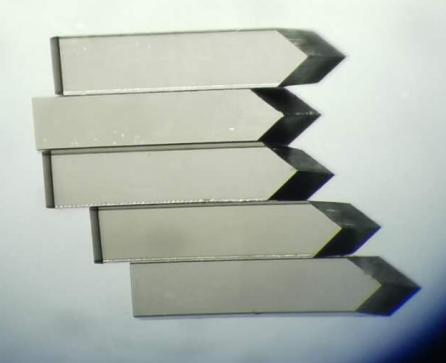

4 X 0.4 X 0.4mm Single Crystal Diamond CVD Dresser Logs

1 / 5

4 X 0.4 X 0.4mm Single Crystal Diamond CVD Dresser Logs

Customization:	Available
Color:	Yellow
Hardness:	10

Send Inquiry

Product Description

Basic Specifications

Model NO.

cvd

Process Type

Hpht

Transport Package

Plastic Bottle

Specification

5.0*5.0*1.1mm

Origin

Hunan, China

HS Code

71049019

Production Capacity

2000 PCS/Month

Package Size

20.00cm * 20.00cm * 10.00cm

Gross Weight

0.500kg

Product Description

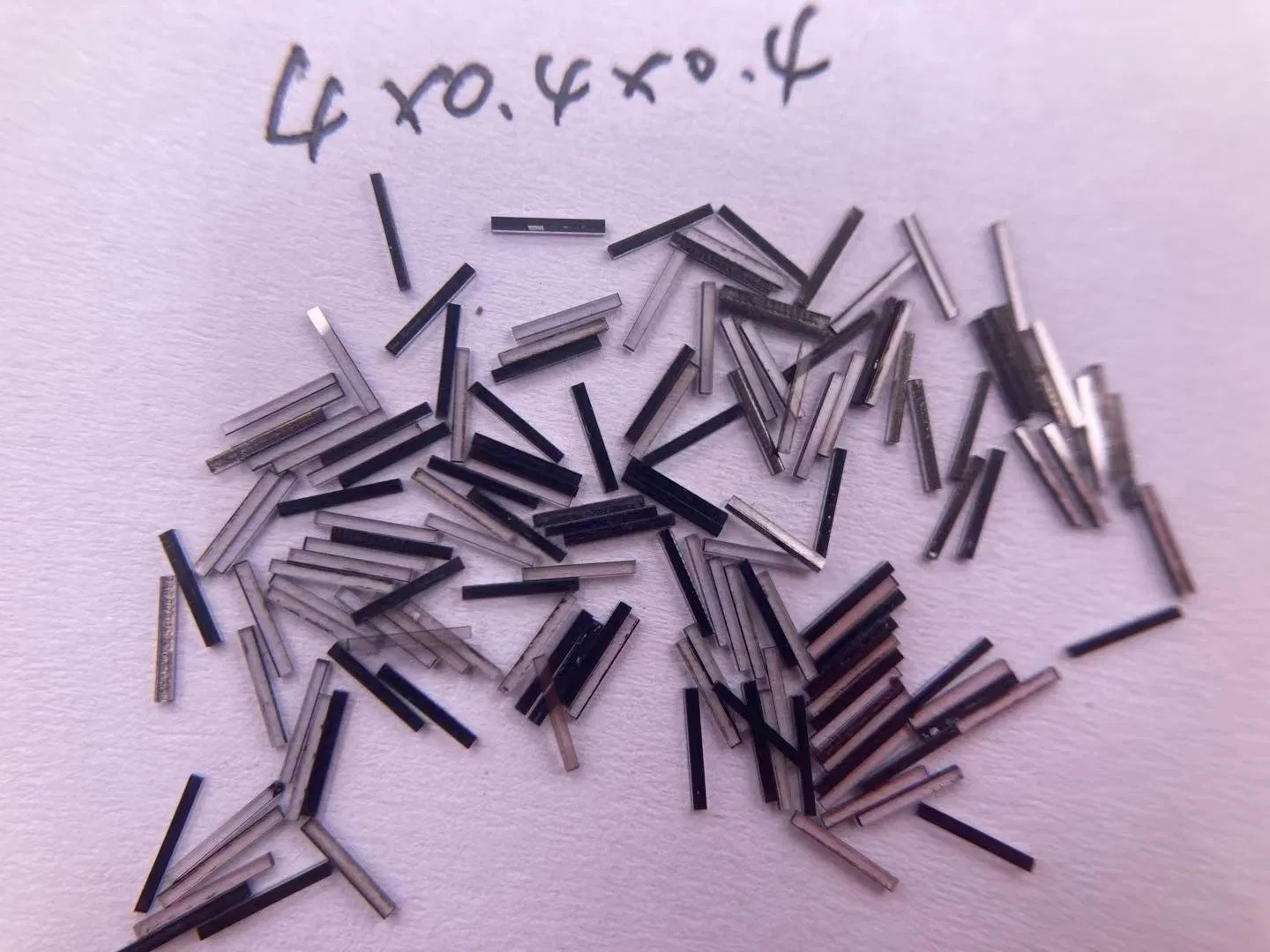

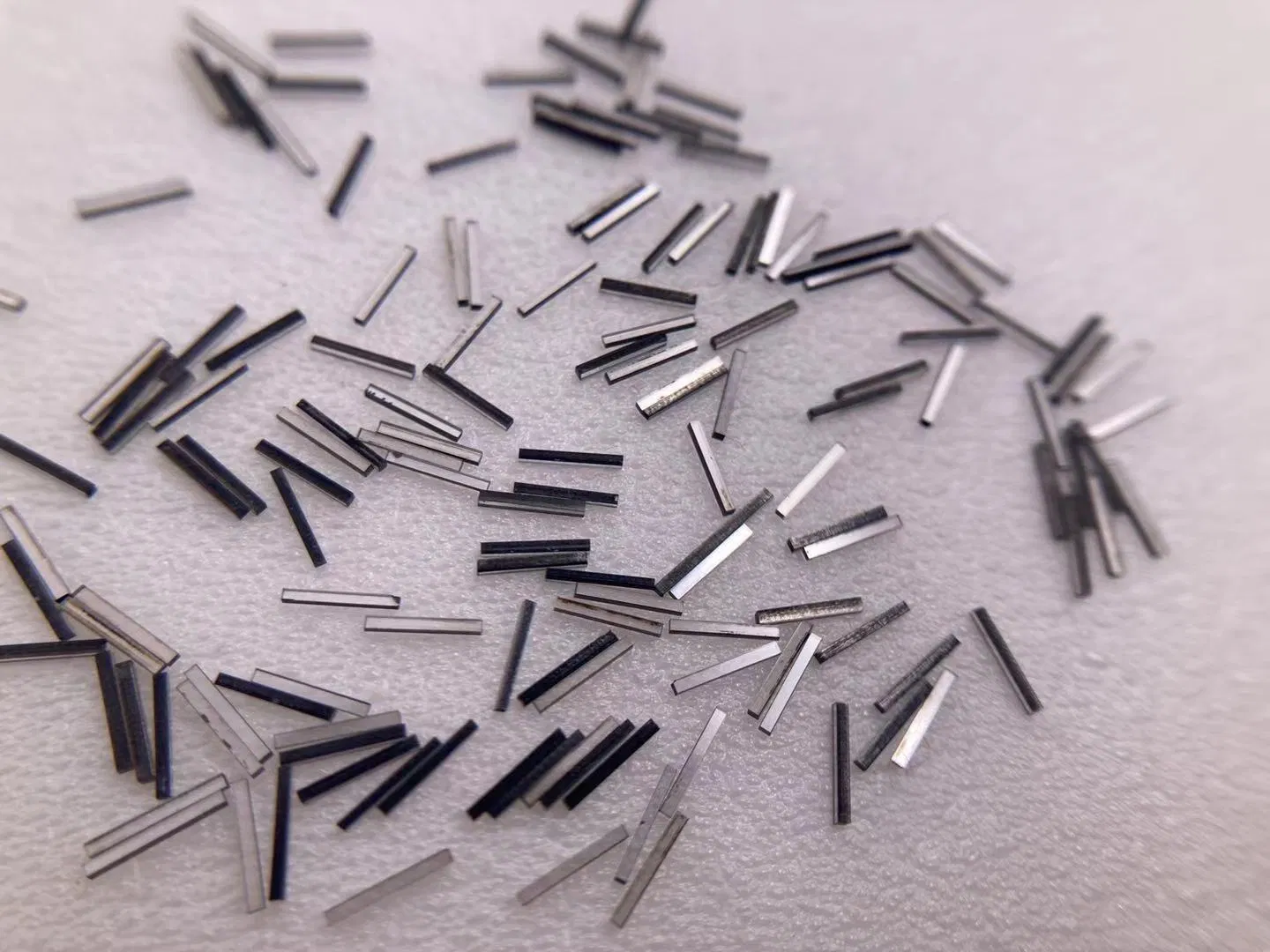

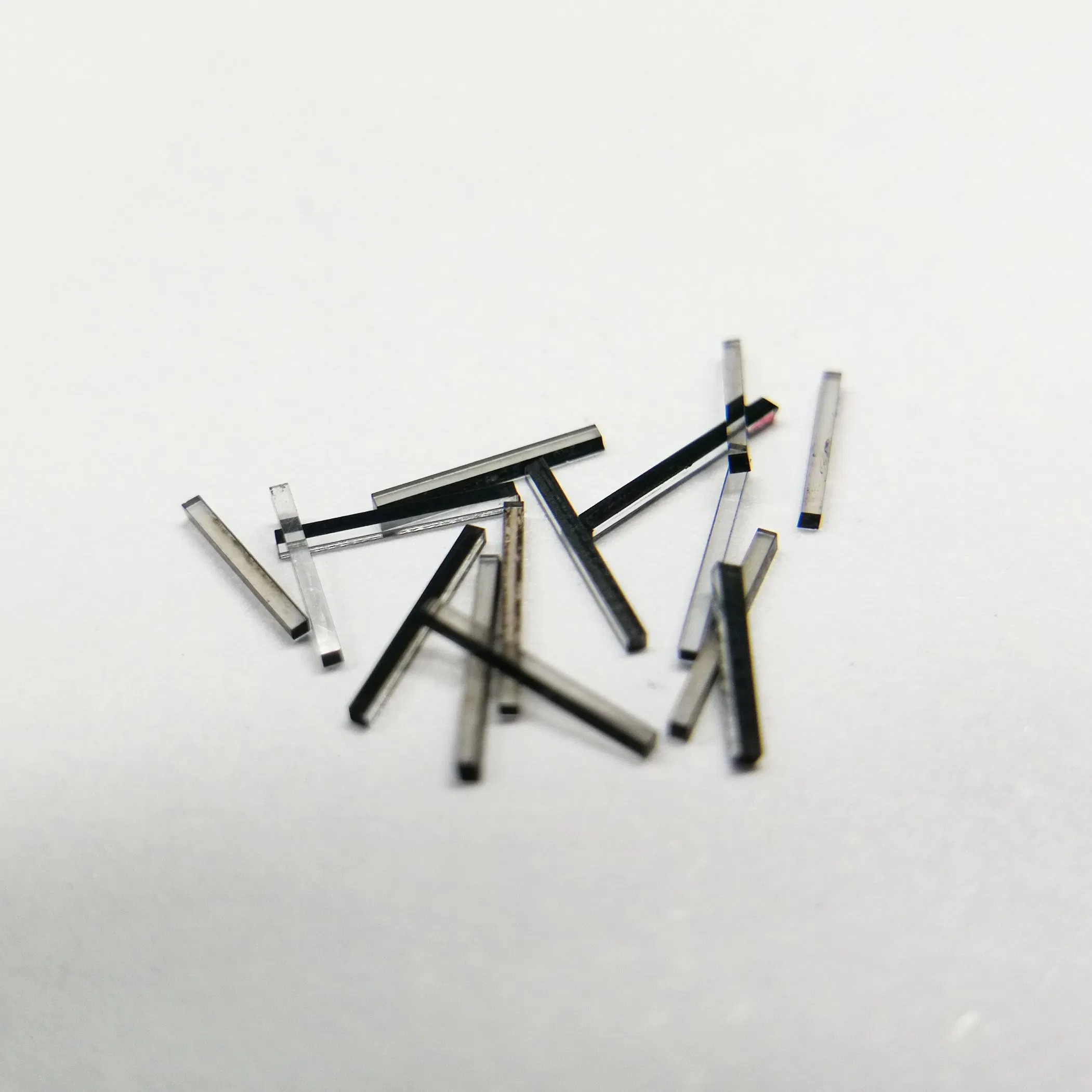

4 X 0.4 X 0.4mm Single Crystal Diamond CVD Dresser Logs

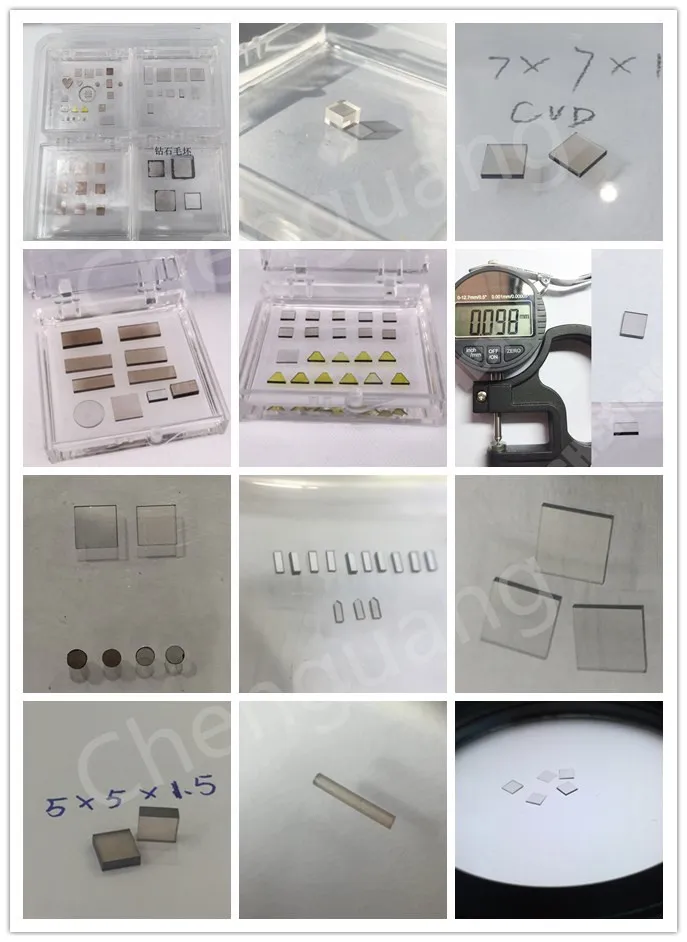

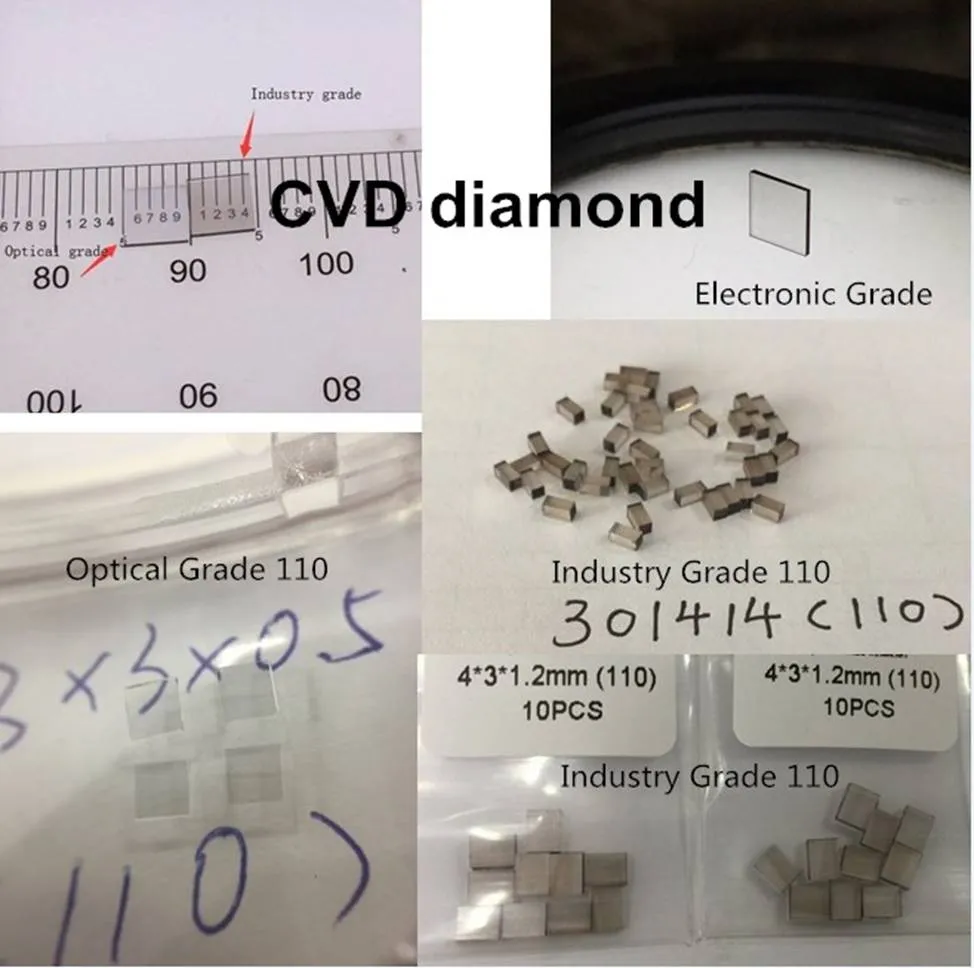

Mono/Single Crystalline CVD Diamond Plate

Size Range: 1x1 mm to 8x8 mm, 10-12mm
Thickness: 0.05mm to 3mm

Grade and Application Areas

Industry: Mechanical applications, Wheel Dressers, Die Blanks, etc.
Electronic: Quantum optics, radiation detectors, etc.
Optical: Precision tools, windows, anvils, sensors, etc.
Thermal/Mechanical: Conventional industrial tools.

Technical Specifications

Surface Options:

As Grown or Laser Cut
Polished (Ra < 5nm, Flatness < 1 fringes @ 633nm)
Lapped (Ra < 200nm, Flatness < 1 fringes @ 633nm)

Type/Orientation:

Top (100), Customized for Scalpels (based on 2 and 4 point configuration)
Customized shapes based on specific designs
Laser cut and both sides polished edges

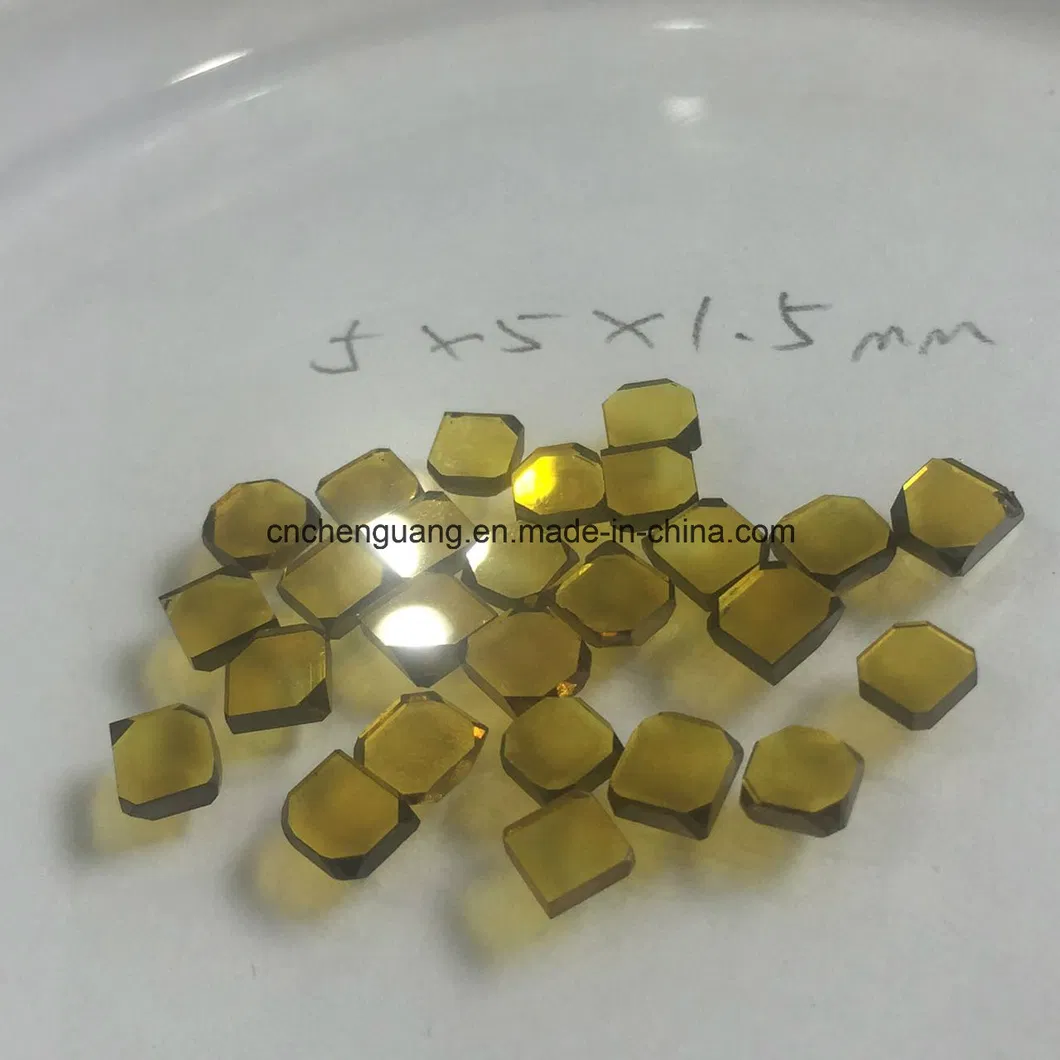

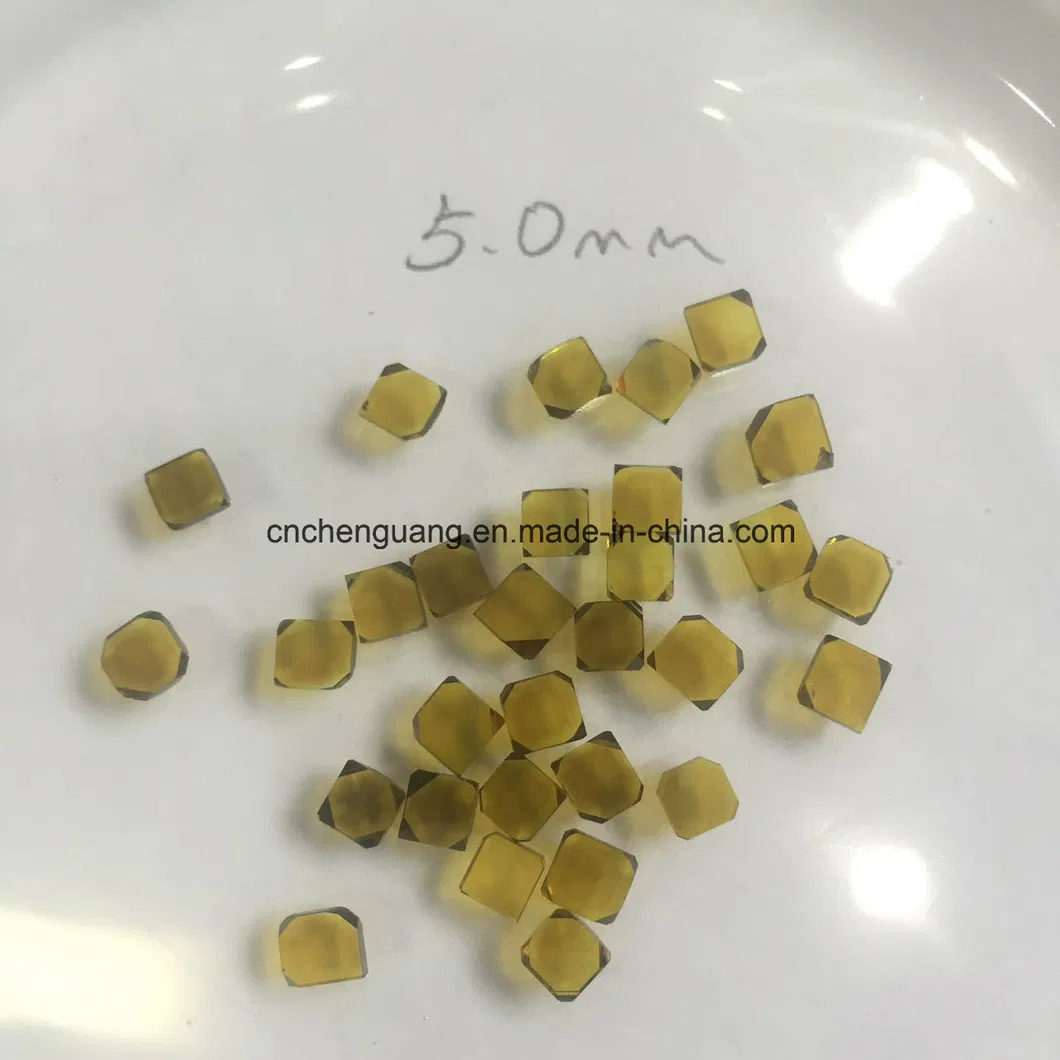

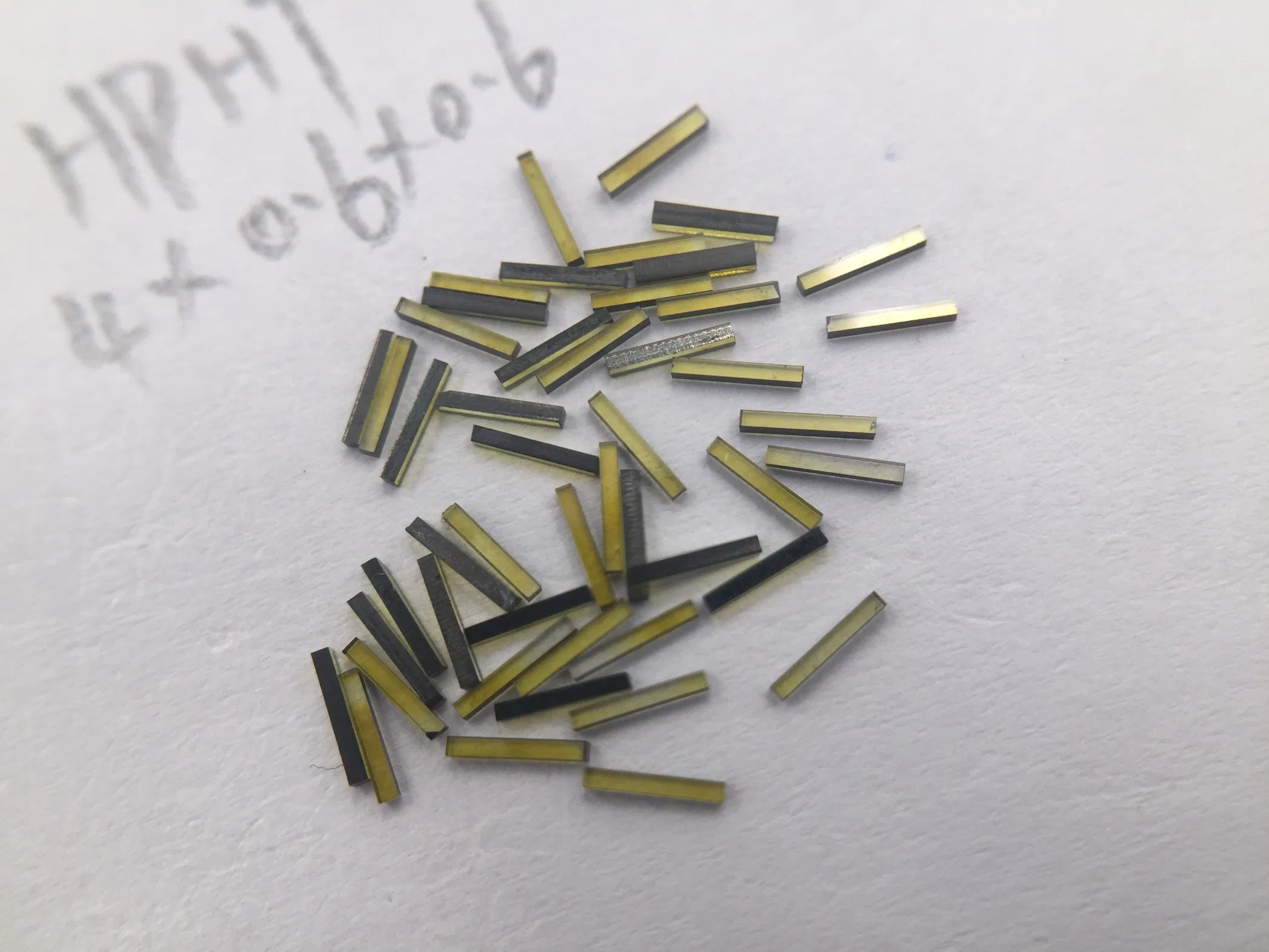

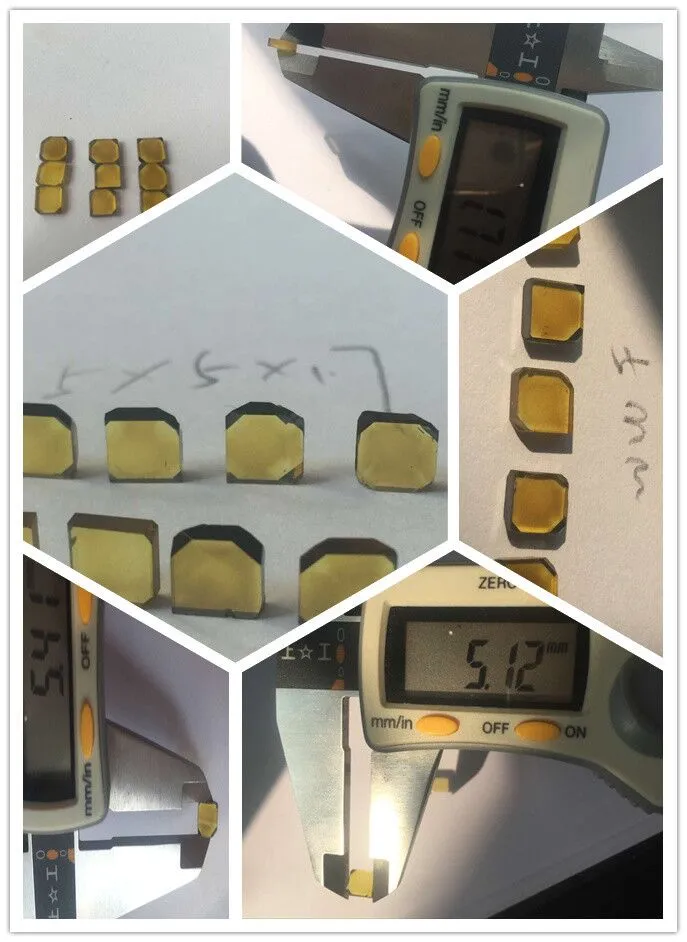

HPHT Single Crystal Diamond Plate Available

Available Sizes:

2.5*2.5*1.1mm | 3.0*3.0*1.1mm | 3.5*3.5*1.1mm | 4.0*4.0*1.1mm | 4.5*4.5*1.1mm | 5.0*5.0*1.1mm | 5.5*5.5*1.1mm | 6.0*6.0*1.1mm

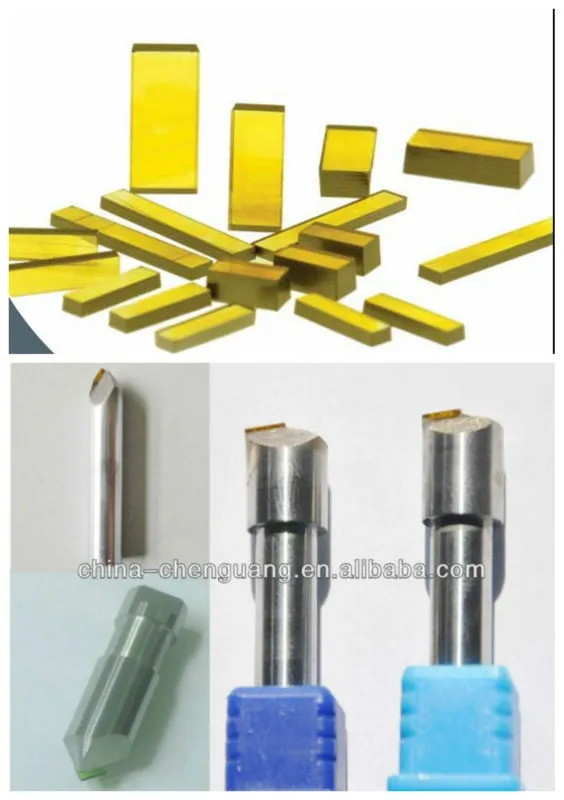

Core Features

Regular and irregular square shapes available
Superior hardness and strength with exceptional thermal stability
High impact resistance for heavy-duty applications
Excellent diaphaneity and optical clarity

Frequently Asked Questions

Q1: What are the main applications for these CVD diamond plates?

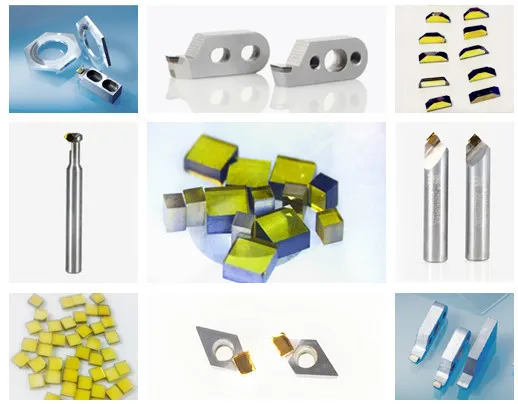

They are primarily used for high-quality cutting tools, wheel dressers, specialty knives, burnishing tools, wear parts, wire drawing dies, and optical windows.

Q2: Can I request customized sizes and shapes?

Yes, customized shapes and sizes are available according to specific requirements. We can produce diamond plates based on your unique design configurations.

Q3: What thickness options are available for the diamond plates?

Our single crystal diamond plates can be manufactured with a thickness ranging from 0.05mm up to 3mm.

Q4: What is the difference between the available surface finishes?

We offer "As Grown" for raw applications, "Lapped" for intermediate smoothness (Ra < 200nm), and "Polished" for high-precision needs requiring extreme flatness (Ra < 5nm).

Q5: Do you offer HPHT diamonds in addition to CVD?

Yes, we supply both CVD (Chemical Vapor Deposition) and HPHT (High Pressure High Temperature) mono-crystal synthetic diamonds in various grades and sizes.

Q6: What is the typical production capacity for these products?

Our current production capacity is approximately 2000 pieces per month, ensuring a steady supply for industrial requirements.
