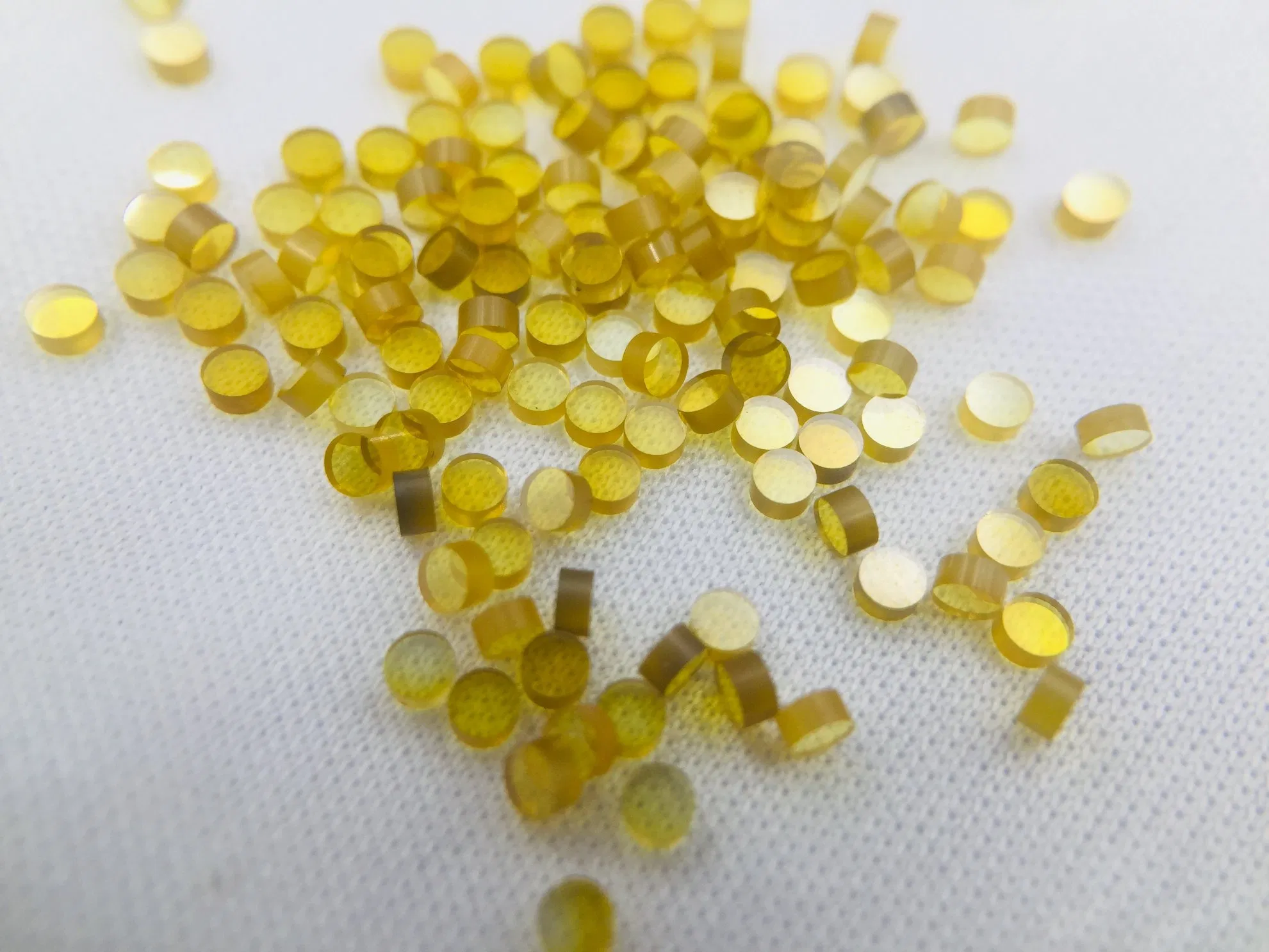

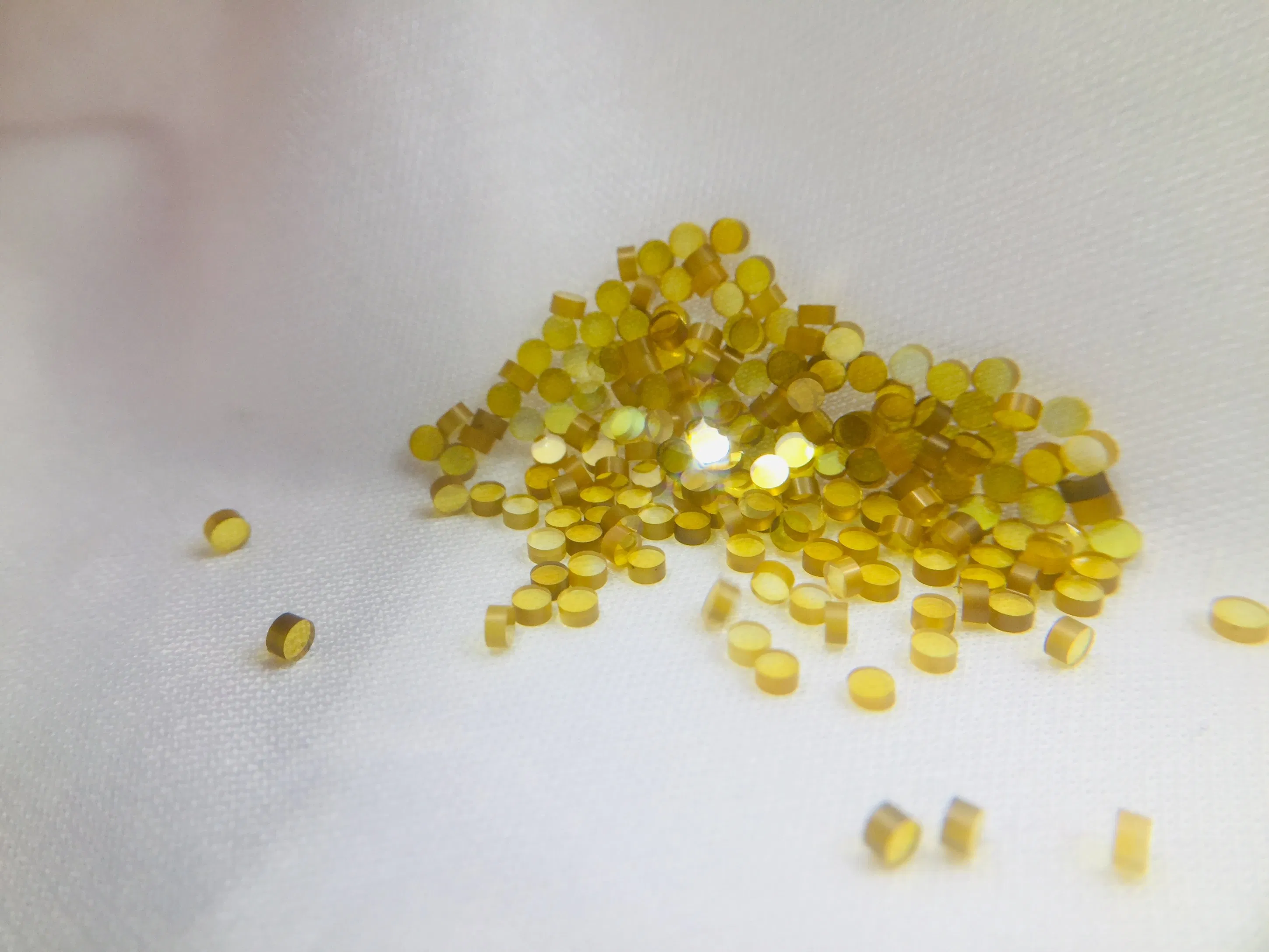

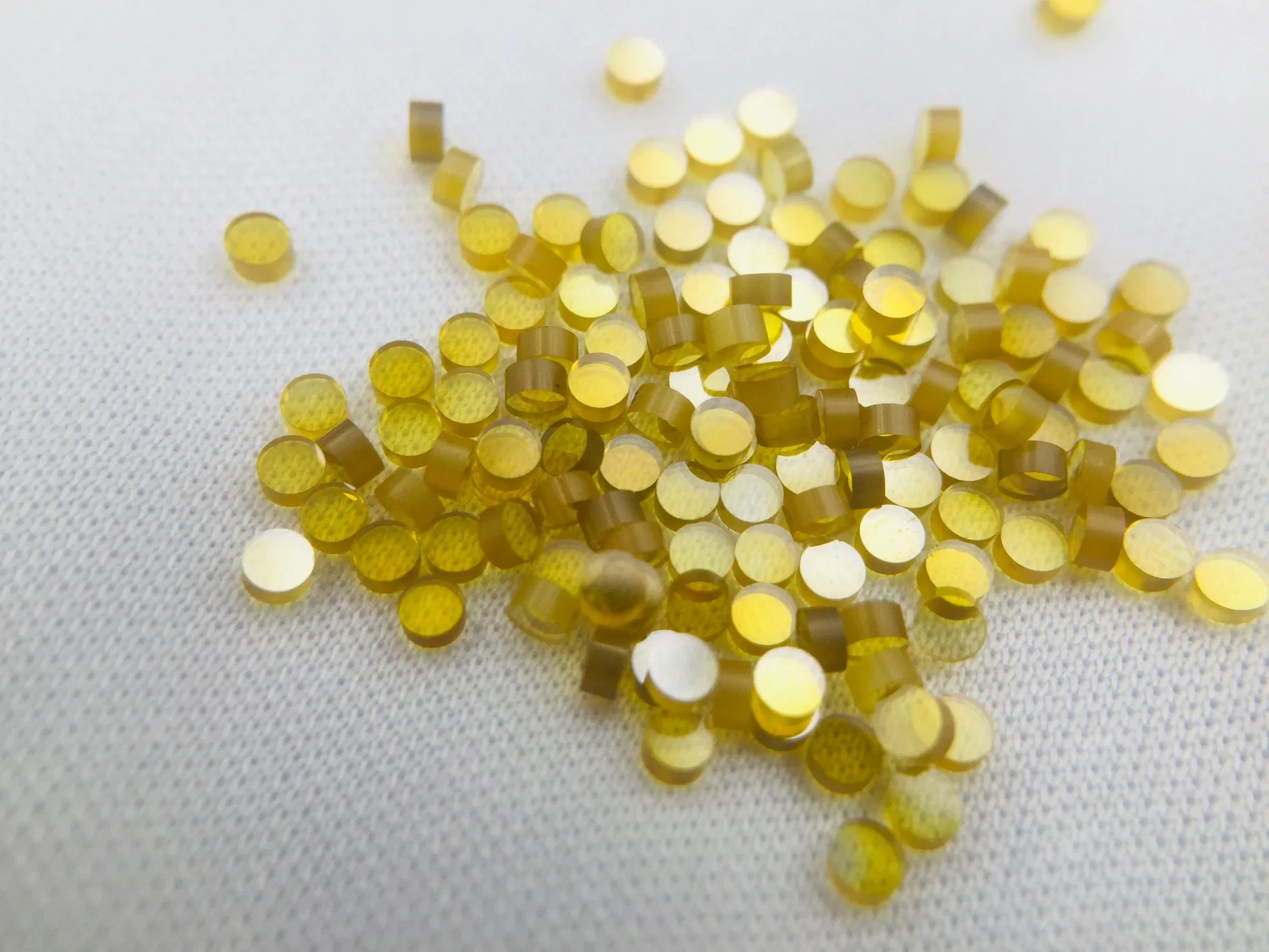

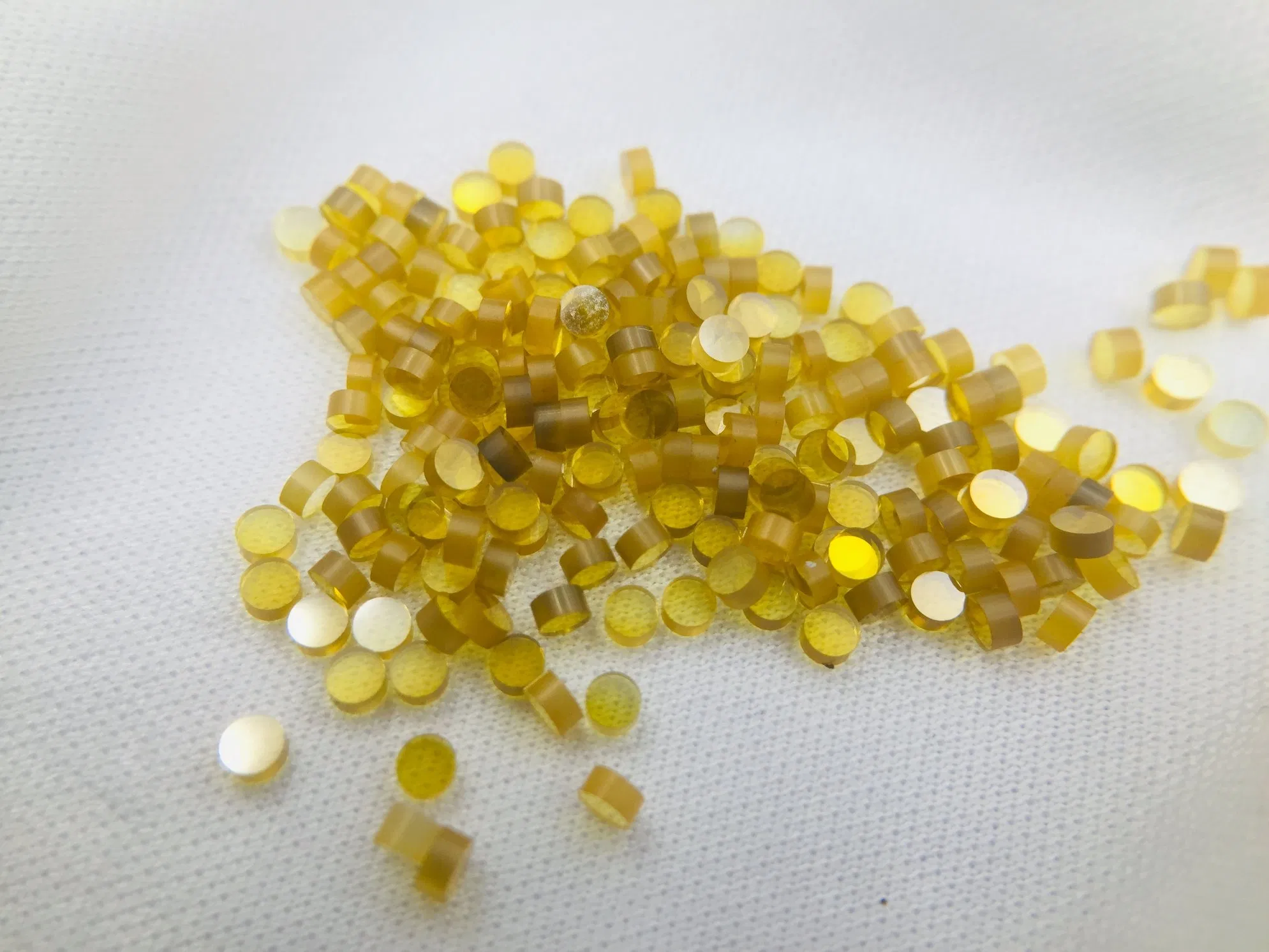

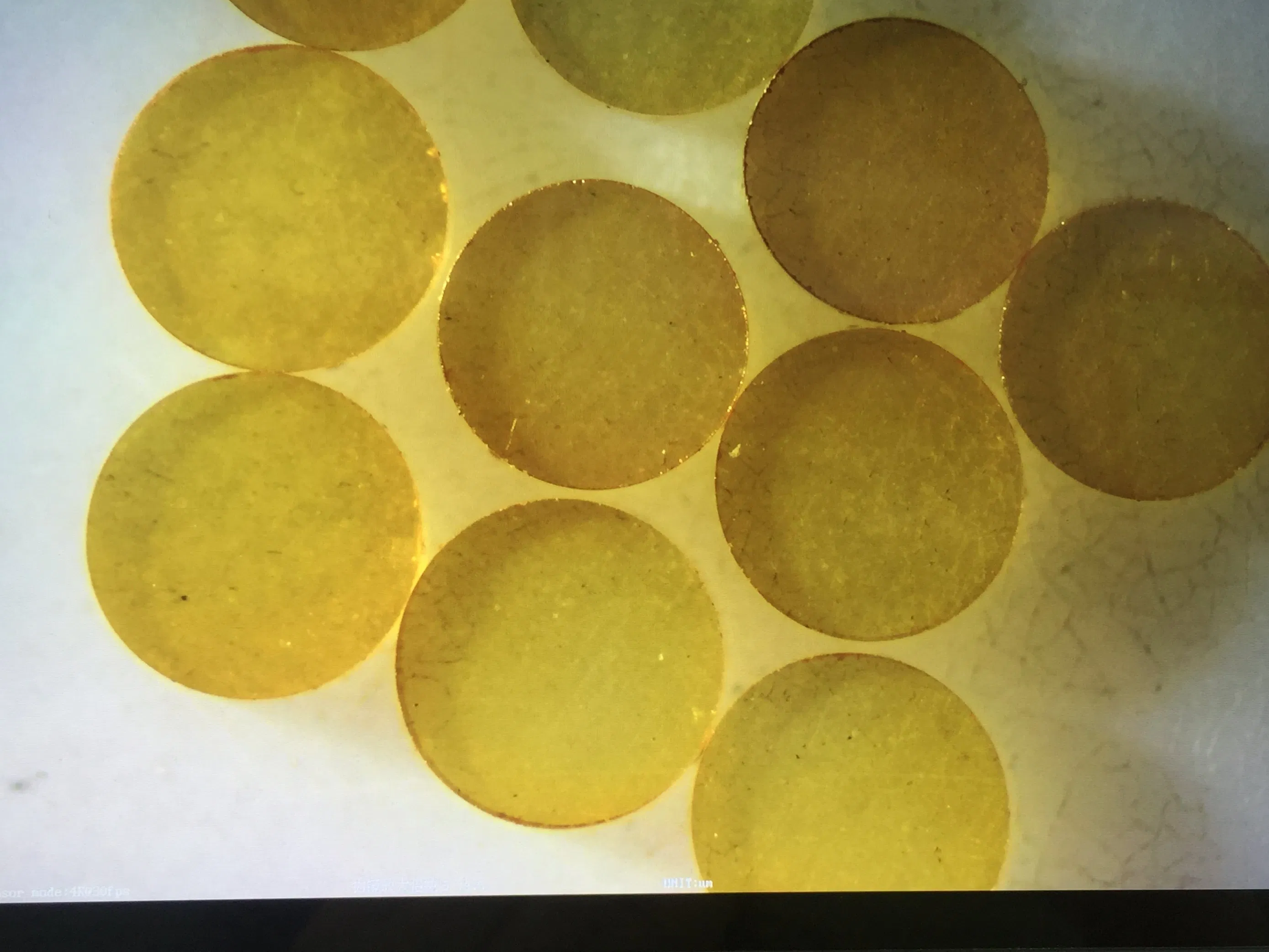

Mcd Round-Cut Mono Crystal Diamond Plate for Diamond Cutting Tools or Wire Drawing Die Cores
Mcd Round-Cut Mono Crystal Diamond Plate for Diamond Cutting Tools or Wire Drawing Die Cores
Mcd Round-Cut Mono Crystal Diamond Plate for Diamond Cutting Tools or Wire Drawing Die Cores
Mcd Round-Cut Mono Crystal Diamond Plate for Diamond Cutting Tools or Wire Drawing Die Cores
Mcd Round-Cut Mono Crystal Diamond Plate for Diamond Cutting Tools or Wire Drawing Die Cores
1 / 5
Mcd Round-Cut Mono Crystal Diamond Plate for Diamond Cutting Tools or Wire Drawing Die Cores
Mcd Round-Cut Mono Crystal Diamond Plate for Diamond Cutting Tools or Wire Drawing Die Cores
Mcd Round-Cut Mono Crystal Diamond Plate for Diamond Cutting Tools or Wire Drawing Die Cores
Mcd Round-Cut Mono Crystal Diamond Plate for Diamond Cutting Tools or Wire Drawing Die Cores
Mcd Round-Cut Mono Crystal Diamond Plate for Diamond Cutting Tools or Wire Drawing Die Cores

Mcd Round-Cut Mono Crystal Diamond Plate for Diamond Cutting Tools or Wire Drawing Die Cores

Customization: Available
Color: Yellow
Hardness: 10
Send Inquiry

Product Description

Basic Product Information
Process Type
HPHT
Transport Package
Plastic Bottle
Specification
2*1 2.7*1 3.0*1 4.0*0.5
Origin
Hunan, China
HS Code
71049019
Capacity
2000 PCS/Month
Package Size
20.00cm * 20.00cm * 10.00cm
Gross Weight
0.500kg
MCD Round-cut Mono Crystal Diamond Plate

Our large size synthetic diamond plates offer exceptional performance for professional industrial applications.

Available Dimensions: 0.6x0.6x1mm, 2.0x2.0x1.0mm, 2.5x2.5x1.0mm, 3.0x3.0x1.0mm, 3.5x3.5x1.0mm, 4.0x4.0x1.0mm, 4.5x4.5x1.0mm, 5.0x5.0x1.0mm, 5.5x5.5x1.0mm, 6x6x1.0mm, 7x7x1.0mm, 8x8x1.0mm, 10x10x1.0mm. Thickness can be customized.

Shapes available: Round, Square, Rectangle, Sexangle.

Primary Applications
◈ Jewelry manufacturing
◈ Cutting tools for non-ferrous and non-metallic materials
◈ Dressers for wheel dressing
◈ Special knives and burnishing tools
◈ Industrial wear parts
◈ Wire drawing dies

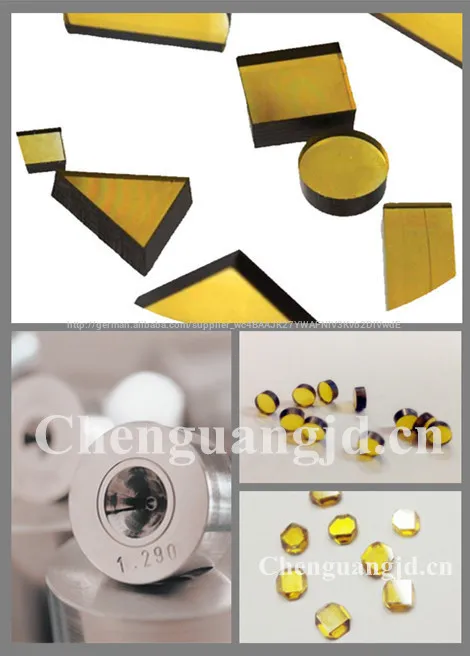

MCD Diamond Plate
Diamond Cutting Tools Core
Key Features & Technical Specifications

Available Plate Sizes: 2.5*2.5*1.1mm up to 6.0*6.0*1.1mm. We provide several grades of mono-crystal synthetic diamonds distinguished by edge quality and clarity.

✓ Regular and irregular square shapes available
✓ Extreme hardness and structural strength
✓ Superior thermal stability
✓ High impact resistance
✓ Excellent diaphaneity (transparency)

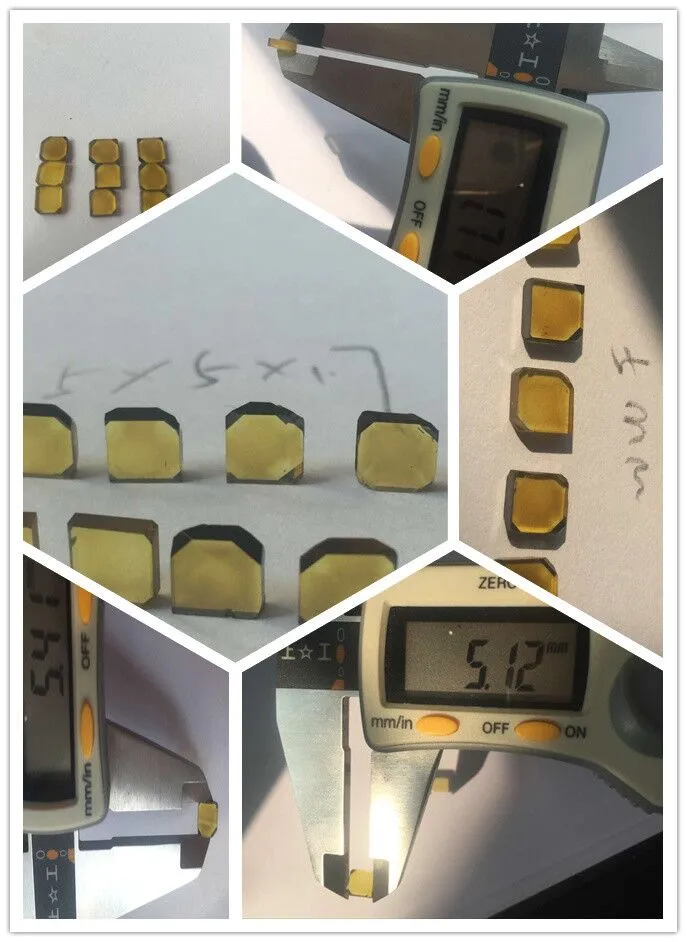

Synthetic Diamond Features

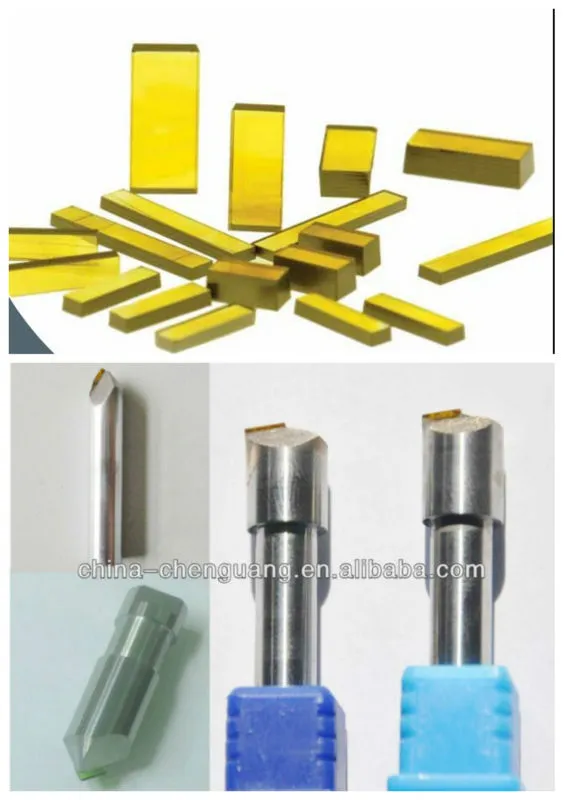

Mono-crystal Diamond Inspection
Additional Product Range

Beyond standard MCD plates, we research and produce according to specific client requirements:

➤ Single-crystal synthetic diamonds
➤ Big size synthetic diamonds
➤ RVD diamond crushing powder
➤ Synthetic diamond micron powder

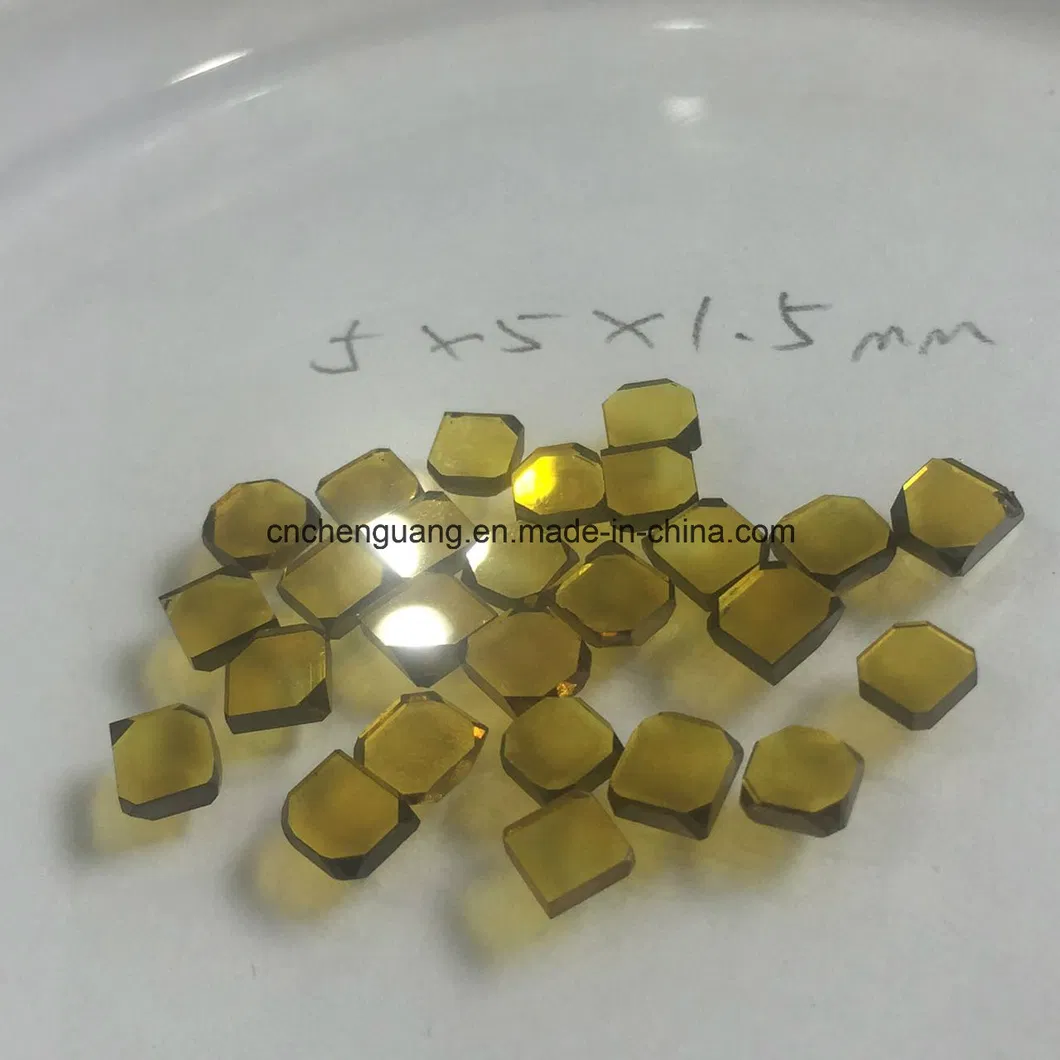

Diamond Product Display 1

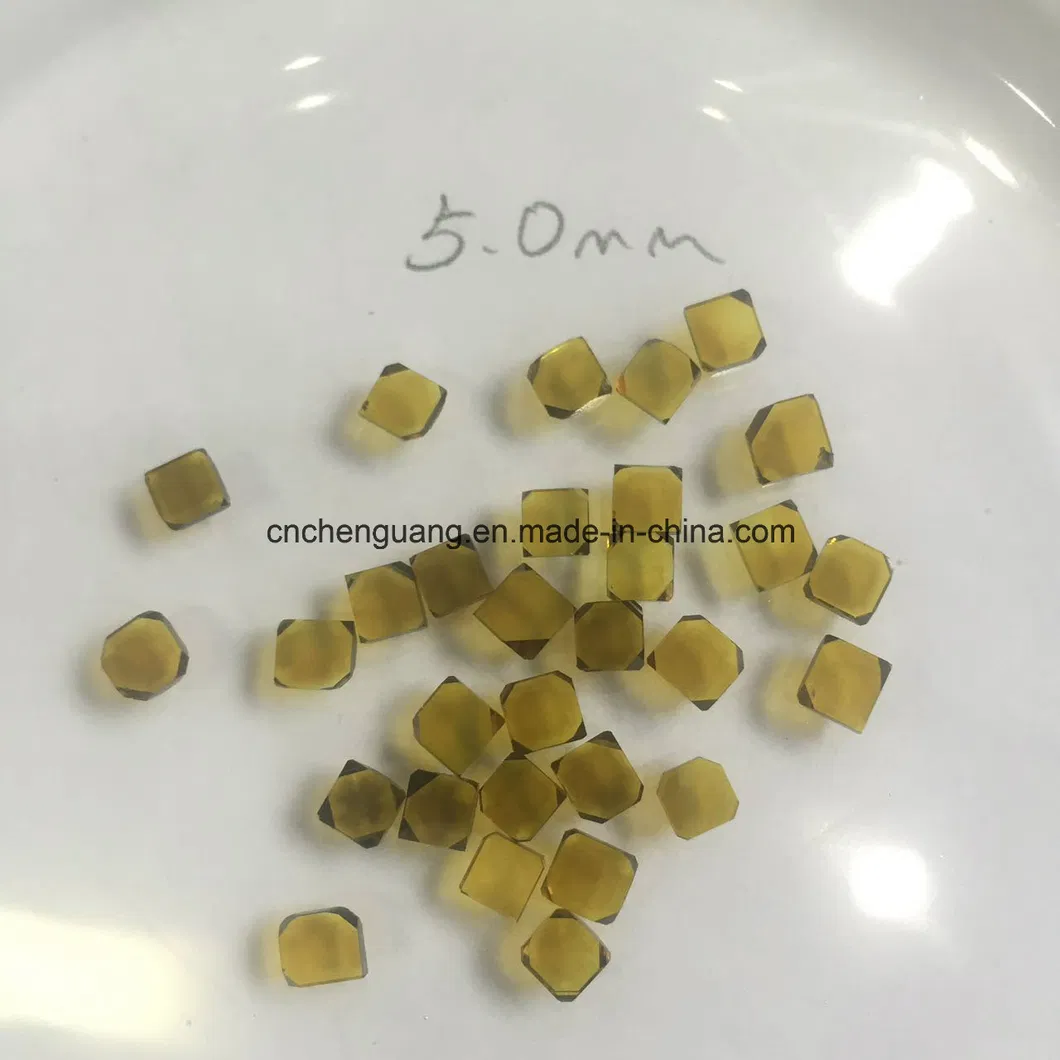

Diamond Product Display 2

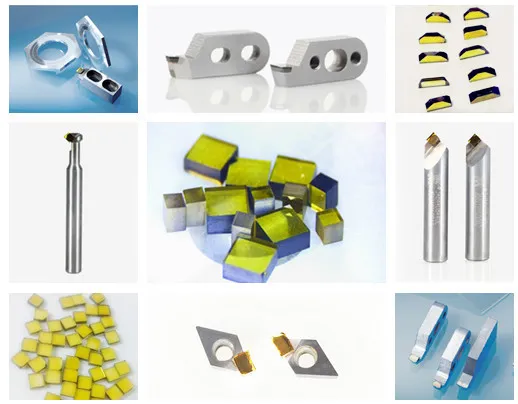

Diamond Product Display 3
Frequently Asked Questions
Q1: What is the HPHT process mentioned in the specifications?
A: HPHT stands for High Pressure High Temperature. It is a method used to create synthetic diamonds by mimicking the natural conditions under which diamonds form deep within the Earth.
Q2: Can the thickness of the diamond plates be customized for specific tools?
A: Yes, while we have standard thicknesses like 1.0mm and 1.1mm, we can customize the thickness according to your specific tool design or application requirements.
Q3: What are the main advantages of using MCD plates for cutting tools?
A: Mono Crystal Diamond (MCD) plates offer extreme hardness, high wear resistance, and the ability to maintain a very sharp cutting edge, making them ideal for non-ferrous and non-metallic material processing.
Q4: What shapes are available for the synthetic diamond plates?
A: We offer a variety of shapes including Round, Square (both regular and irregular), Rectangle, and Sexangle shapes to fit different industrial needs.
Q5: How is the quality of these synthetic diamonds graded?
A: Our mono-crystal diamonds are distinguished by various grades based on the number of straight edges, transparency, and the presence or absence of internal spots or cracks.
Q6: What is the production capacity for these diamond plates?
A: Our current production capacity is 2000 pieces per month, ensuring a steady supply for both small and large scale industrial requirements.
